The distance travelled by a particle starting from rest is plotted against the square of the time elapsed from the commencement of motion. The resulting graph is linear, the slope of this graph is a measure of
Answer
(D)
half the acceleration
2
For which of the underlisted quantities is the derived unit \(ML^2T^{-2}\) correct? i. moment of a force ii. work iii. acceleration
Answer
(D)
i and ii
3
What volume of alcohol with a density of 8.4 x 102kgm-3 will have the same mass as 4.2m3of petrol whose density is 7.2 x 102kgm-3?
Answer
(B)
3.6m3
4
For correcting long sight defects in the human eye we require a
Answer
(A)
converging lens
5
For a concave mirror to form a teal diminished image, the object must be placed
Answer
(E)
at a distance greater than the radius of curvature
6
The unit of quantity of electricity is called
Answer
(C)
the coulomb
7
The resistance of a wire depends on
Answer
(E)
all of the above
8
Two cells each of e.m.f. 1.5V and an internal resistance 2\(\Omega\) are connected in parallel. Calculate the current flowing when the cells are connected to a 1\(\Omega\) resistor
Answer
(A)
0.75\(\Omega\)
9
Which of the following components is NOT contained in a dry cell? A
Answer
(E)
copper rod
10
Which of the following can be described as high tension transmission?
Answer
(B)
low current and high voltage
11
All the heat generated in a 5\(\Omega\) resistor by 2A flowing for 30 seconds is used to evaporate 5g of a liquid at its boiling point. Which of the following is the correct value of the specific latent heat of the liquid?
Answer
(C)
120Jg-1
12
When vibration occurs in air column, the distance between a node and an antinode is equal to
Answer
(A)
one-quarter of the wavelength
13
Which of the following statements is (are) NOT correct? i. pressure changes do not affect the speed of sound in air ii. the velocity of sound increases with temperature iii. the quality of the note depends only on its frequency
Answer
(D)
i and iii
14
One of two identical tuning forks with natural frequency 256Hz, one is loaded so that 4 beats per second are heard when they are sounded together. What is the frequency of the loaded tuning fork?
Answer
(B)
252Hz
15
Dewpoint is the temperature at which, water vapour in the atmosphere
Answer
(D)
is just sufficient to cause cooling
16
The lower and upper fixed points marked on a mecury-in-glass thermometer are 210mm apart. The end of the mercury column in the tube is 49mm above the lower fixed point in a room. What is the temperature of the room in degrees Celsius?
Answer
(B)
23.3oC
17
If a solid changes directly into a gas when heat is applied the process is called
Answer
(C)
sublimation
18
A plane inclined at an angle of 30o to the horizontal has an efficiency of 60%. The force parallel to the plane required to push a load of 120N uniformly up the plane is
Answer
(B)
100N
19

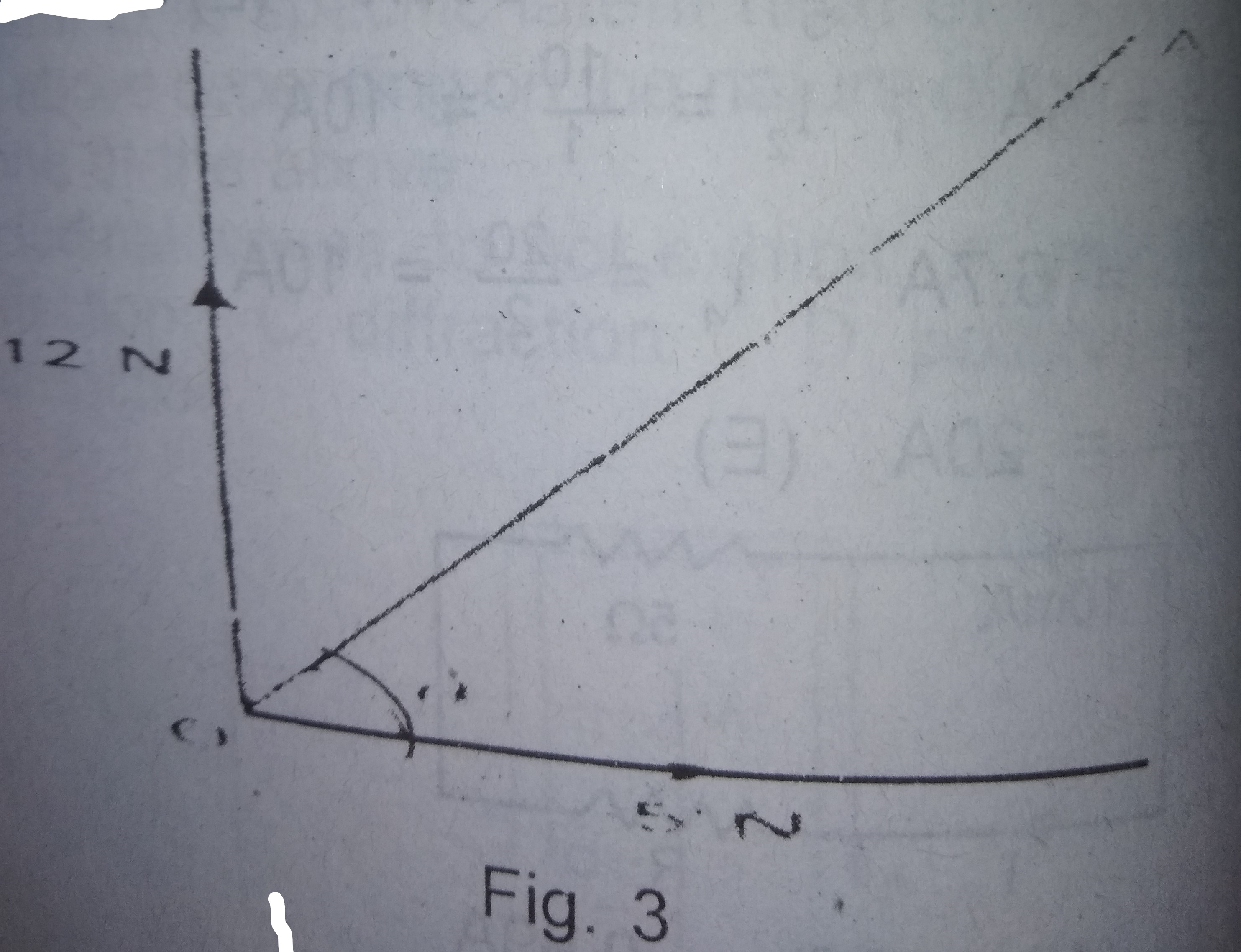

A body of mass 5kg initially at rest is acted upon by two mutually perpendicular forces 12N and 5N as shown in fig.3. If the particle moves in the direction QA, calculate the magnitude of the acceleration
Answer
(D)
2.60ms-2
20
A small steel needle is carefully floated on water in a beaker. When a few drops of kerosine are introduced into the water the needle sink. Which of the following statements correctly explain(s) the observation? i. there is tension on the water surface ii. kerosine reduces the density of water so that needle becomes denser than water iii. kerosine reduces the surface tension of water
Answer
(E)
i and iii
21
Which of the following statements describes an atom accurately? i. atoms of all elements are identical ii. an atom contains a nucleus and number of electrons iii. due to the electrons in the atom an atom is negatively charged iv. electrons in the atom move in circular orbits round the nucleus
Answer
(D)
ii and iv only
22
A particle moves in a circular orbit of radius 0.02m. If the speed of the particle is 0.88ms-1, calculate its frequency in cycles per second
Answer
(B)
7.0Hz
23
Heat is supplied uniformly at the rate of 100W to 1.0 x 10-2kg of a liquid for 20 seconds. If the temperature of the liquid rises by 5oC, then the specific heat capacity of the liquid is
Answer
(C)
4.0 x 104Jkg-1k-1
24
A given mass of an ideal gas occupies a volume V at a temperature T and under a pressure p. If the pressure is increased to 2p and the temperature reduced to \(\frac{1}{2T}\), then the percentage change in the volume of the gas is
Answer
(C)
75%
25
Which of the following properties of matter CANNOT be utilized for temperature measurement? The
Answer
(E)
current produced in a photoelectric effect
26
Which of the following statements about the compound microscope and astronomical telescope is (are) correct? i. the final image of a compound microscope is located at infinity ii. the final image of the astronomical telescope is always erect iii. the objective lens of a compound microscope has a very short focal length
Answer
(C)
iii only
27
A coin is placed at the bottom of a cube of glass t cm thick. If the refractive index of the glass is \(\mu\), how high does the coin appear to be raised to an observer looking perpendicularly into the glass?
Answer
(B)
\(\frac{t(\mu - I)}{\mu}\)
28
The electromotive force obtained from a simple dynamo may be increased by
Answer
(C)
increasing the speed of rotation
29
A gun of mass 2.0kg fires a bullet of mass 16 x 10 -2kg due East. If the bullet leaves the nozzle of the gun with a velocity of 150ms-1, what is the recoil velocity of the gun?
Answer
(C)
1.2ms-1 due West
30
Which of the following is a correct explanation of the inertia of a body?
Answer
(E)
reluctance to start moving its reluctance to stop moving once it has begun to move
31
If a water pump at Kainji Dam is capable of lifting 1000kg of water through a vertical height of 10m in 10s, the power of the pump is [g = 10ms-2]
Answer
(B)
10.0kW
32
What is the apparent colour of a RED SHIRT when viewed in PURE green light?
Answer
(D)
Black
33
The spectrum of white light consists of coloured lights arranged in the following order
Answer
(B)
red, orange, yellow, green, blue, indigo, violet
34
Cathode rays are
Answer
(C)
streams of electrons
35
A device that converts sound energy into electrical energy is?
Answer
(C)
a microphone
36
Which of the following i. \(\beta\)-particles ii. protons iii. neutrons iv. \(\alpha\)-particles. may be found in light nuclei?
Answer
(D)
ii and iii
37
Radio waves have a velocity of 3 x 108ms-1. A radio station sends out a broadcast on a frequency of 800kHz. The wavelength of the broadcast is
Answer
(A)
375.0m
38
What is the cost of running five 50W lamps and four 100W lamps for 10 hours if electrical energy costs 2 kobo per kWh?
Answer
(B)
N0.13
39
Which of the following statements is (are) NOT true about the emission of the photoelectrons from metallic surfaces?
i. all metallic surfaces emits the same number of photoelectrons in a given light
ii. most metallic surfaces emit the same number of photoelectrons in visible and infra-red light
iii. a metallic surface emits photoelectrons only if the frequency of the incident light is higher than its own characteristics threshold frequency
Answer
(E)
iii only
40
A galvanometer of resistance 5.0Ω has full-scale deflection for a current of 100mA. How would its range be extended to 1.0A? By placing a resistance of
Answer
(A)
\(\frac{5}{9}\)\(\Omega\) in parallel
41
A simple pendulum, 0.6m long, has a period of 1.5s. What is the period of a similar pendulum of 0.4m length in the same location?
Answer
(A)
\( 1.5 \frac{ \sqrt{2}}{3} \)s
42

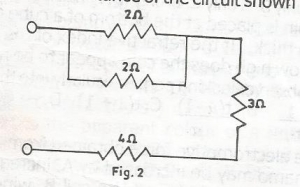

What is the resistance of the circuit shown above
Answer
(E)
8Ω
43

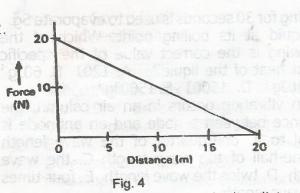

A force varying linearly with the distance acts on a body as shown above, The work done on the body by the force during the first 10m of motion is
Answer
(A)
100J
44

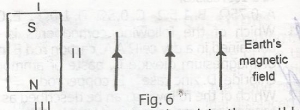

A short bar magnet is placed in earth's magnetic field, as shown above, which of the points II and III are/is possible positions of a neutral point?
Answer
(C)
III only
45

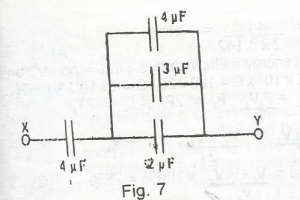

In the circuit Shown above, calculate the effective capacitance between X and Y
